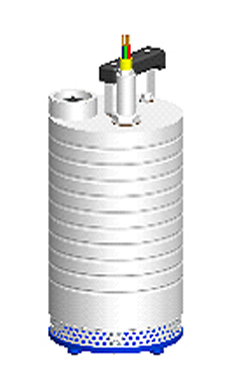

Dewatering Submersible Pumps

DD Series

0.55 TO 1.5 kW

TECHNICAL SPECIFICATION
HEAD (MTRS)	: UP TO 18 MTRS
CAPACITY (LPM)	: UP TO 450 LPM
RATING (kW)	: 0.55 TO 1.5 kW
MOTOR	: OIL FILLED VERTICAL
WINDING	: F CLASS
RPM	: 2900
SEAL	: MECHANICAL SEAL
SUPPLY	: THREE PHASE,360/440 V, 50Hz

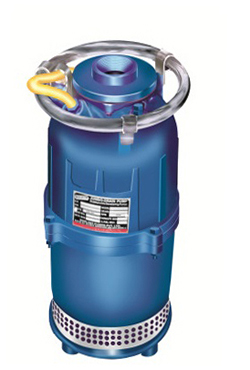

L J Series

0.55 TO 1.5 kW

TECHNICAL SPECIFICATION
HEAD (MTRS)	: UP TO 28 MTRS
CAPACITY (LPM)	: UP TO 500 LPM
RATING (kW)	: 0.55 TO 1.5 kW
MOTOR	: OIL FILLED, VERTICAL
WINDING	: PVC Insulated (Rewindable)
RPM	: 2900
SEAL	: MECH. SEAL / OIL SEAL
SUPPLY	: SINGLE PHASE,230/440V, 50Hz, Three Phase, 360/440 V, 50 HZ

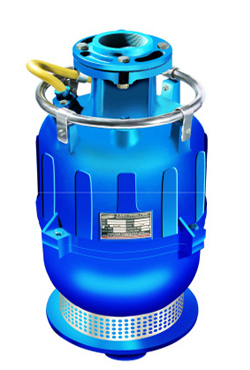

J Series 9.3 kw

2.2 TO 9.3 kW

TECHNICAL SPECIFICATION
HEAD (MTRS)	: UP TO 46 MTRS
CAPACITY (LPM)	: UP TO 3000 LPM
RATING (kW)	: 2.2 TO 9.3 kW
MOTOR	: OIL FILLED, VERTICAL
WINDING	: PVC Insulated (Rewindable)
RPM	: 2900
SEAL	: DUAL MECHANICAL SEAL
SUPPLY	: Three Phase, 360/440 V, 50 HZ

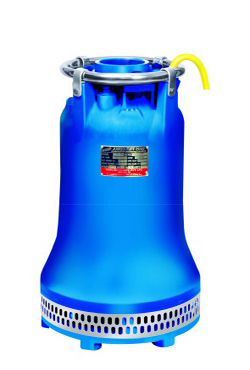

Tuff Series

0.55 TO 1.5 kW

TECHNICAL SPECIFICATION
HEAD (MTRS)	: UP TO 28 MTRS
CAPACITY (LPM)	: UP TO 1800 LPM
RATING (kW)	: 2.2 TO 9.3 kW
MOTOR	: OIL FILLED (VERTICAL)
WINDING	: PVC INSULATED (REWINDABLE)
RPM	: 2900
SEAL	: DUAL MECHANICAL SEAL
SUPPLY	: THREE PHASE,360/440 V, 50Hz

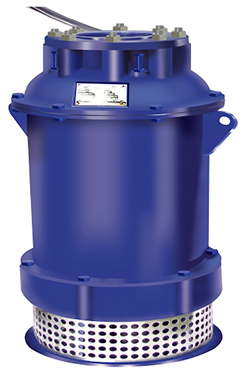

J Series 11.2 Kw

11 TO 110* kW

TECHNICAL SPECIFICATION
HEAD (MTRS)	: UP TO 108 MTRS
CAPACITY (LPM)	: UP TO 6000 LPM
RATING (kW)	: 11 TO 110* kW
MOTOR	: OIL FILLED (VERTICAL)
WINDING	: PVC INSULATED (REWINDABLE)
RPM	: 2900
SEAL	: DUAL MECHANICAL SEAL
SUPPLY	: THREE PHASE,360/440 V, 50Hz, * CONTACT US FOR PUMPS ABOVE 55 kW

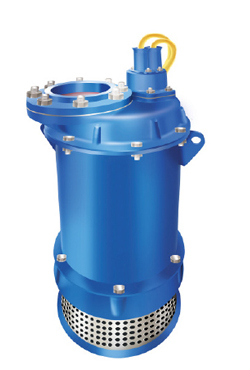

T Series

11.2 TO 110* kW

TECHNICAL SPECIFICATION
HEAD (MTRS)	: UP TO 108 MTRS
CAPACITY (LPM)	: UP TO 6000 LPM
RATING (kW)	: 11 TO 110 kW
MOTOR	: OIL FILLED (VERTICAL)
WINDING	: PVC INSULATED (REWINDABLE)
RPM	: 2900
SEAL	: DUAL MECHANICAL SEAL
SUPPLY	: THREE PHASE,360/440V, 50Hz, * CONTACT US FOR PUMPS ABOVE 55 kW

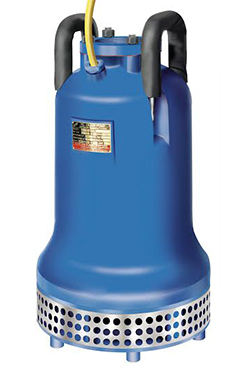

TL Series

2.2 TO 7.5kW

TECHNICAL SPECIFICATION
HEAD (MTRS)	: UP TO 14 MTRS
CAPACITY (LPM)	: UP TO 5000 LPM
RATING (kW)	: 2.2 TO 7.5 kW
MOTOR	: OIL FILLED (VERTICAL)
WINDING	: PVC INSULATED (REWINDABLE)
RPM	: 1450
SEAL	: DUAL MECHANICAL SEAL
SUPPLY	: THREE PHASE,360/440 V, 50Hz

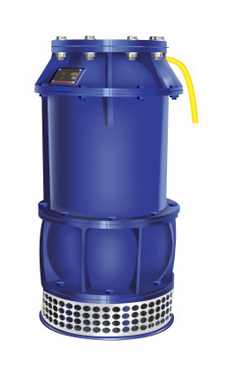

JL Series

11 TO 22kW

TECHNICAL SPECIFICATION
HEAD (MTRS)	: UP TO 18 MTRS
CAPACITY (LPM)	: UP TO 12000 LPM
RATING (kW)	: 11 TO 22 kW
MOTOR	: OIL FILLED (VERTICAL)
WINDING	: PVC INSULATED (REWINDABLE)
RPM	: 1450
SEAL	: DUAL MECHANICAL SEAL
SUPPLY	: THREE PHASE, 360/440V, 50Hz
